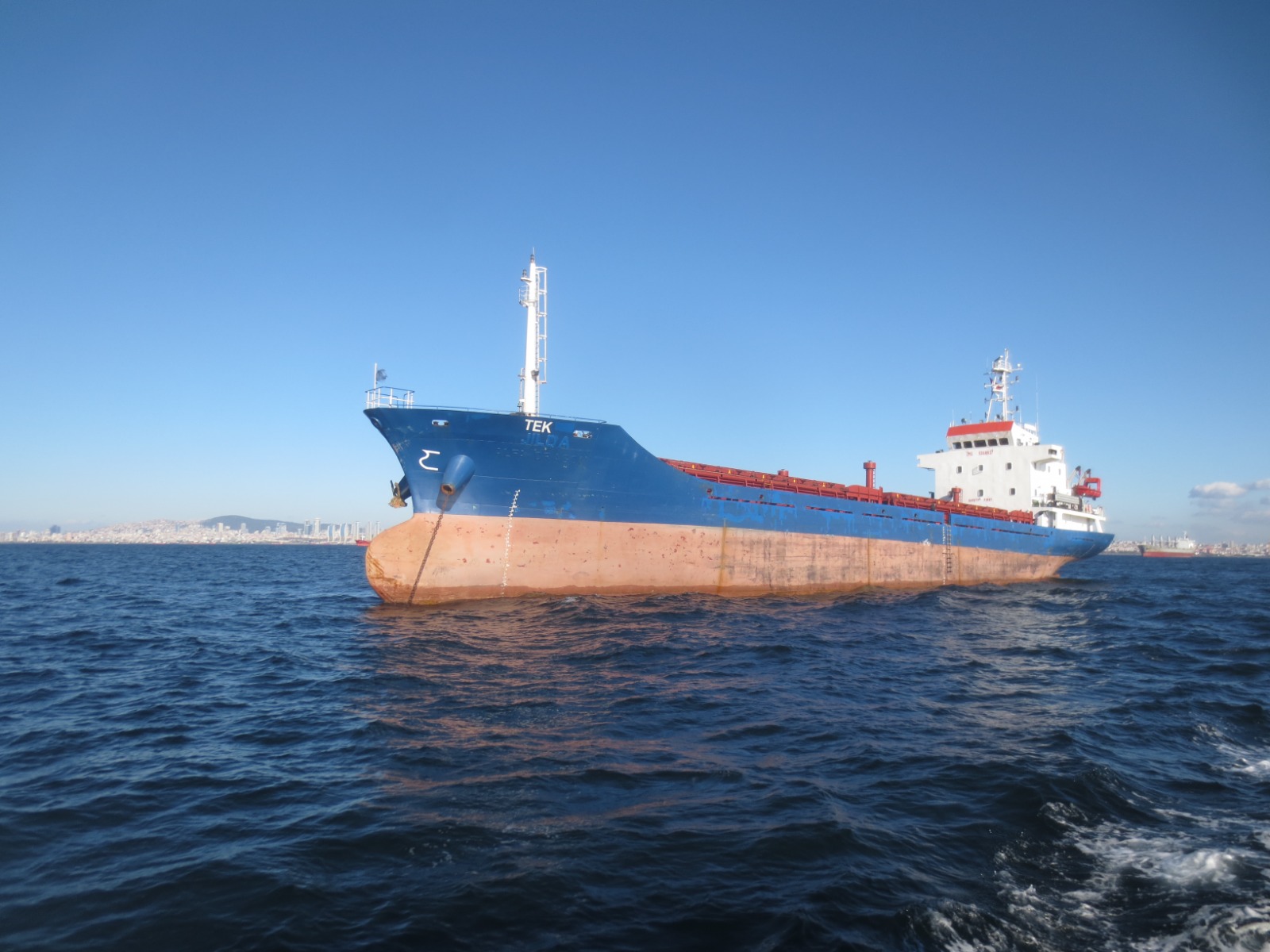

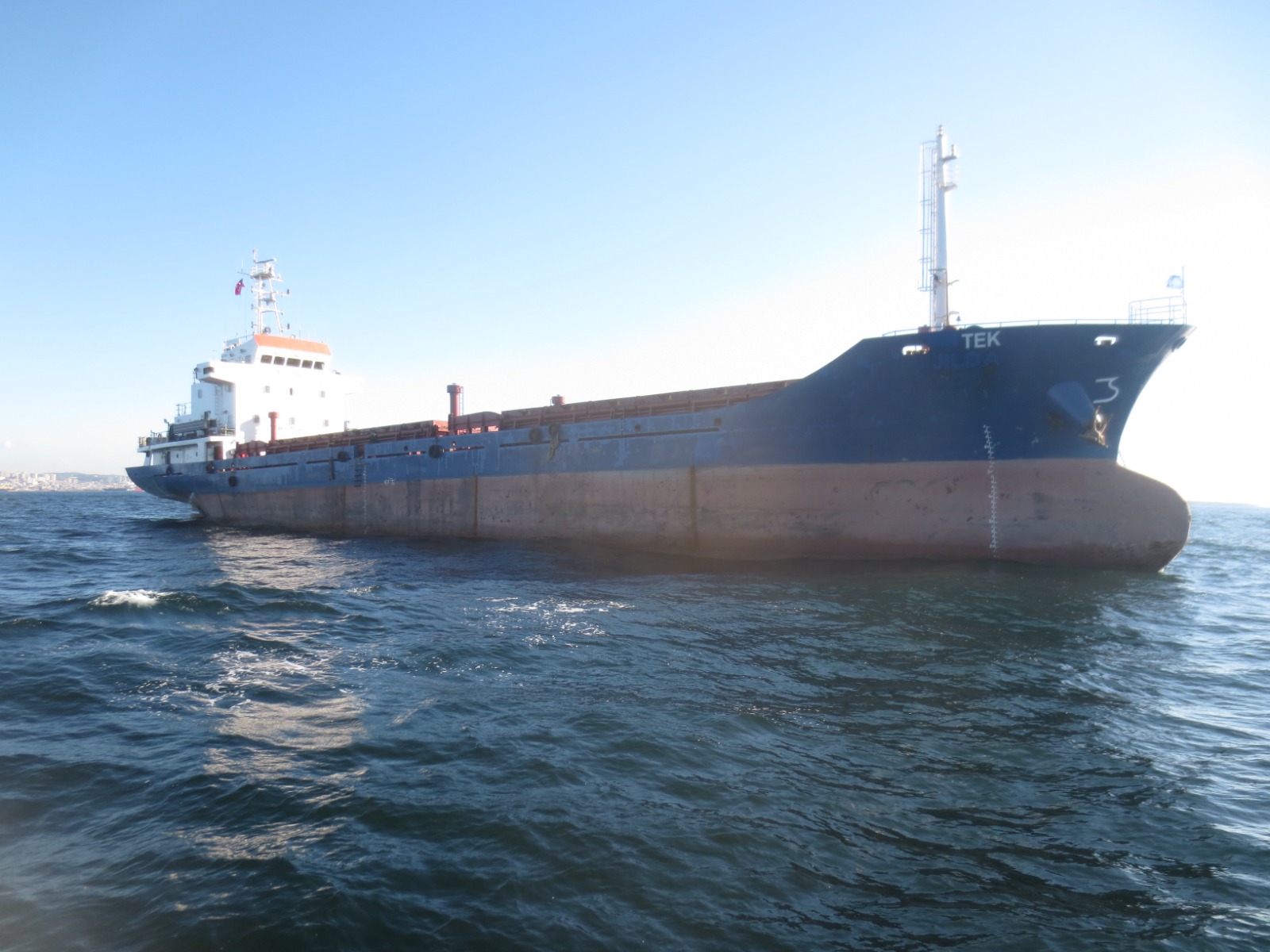

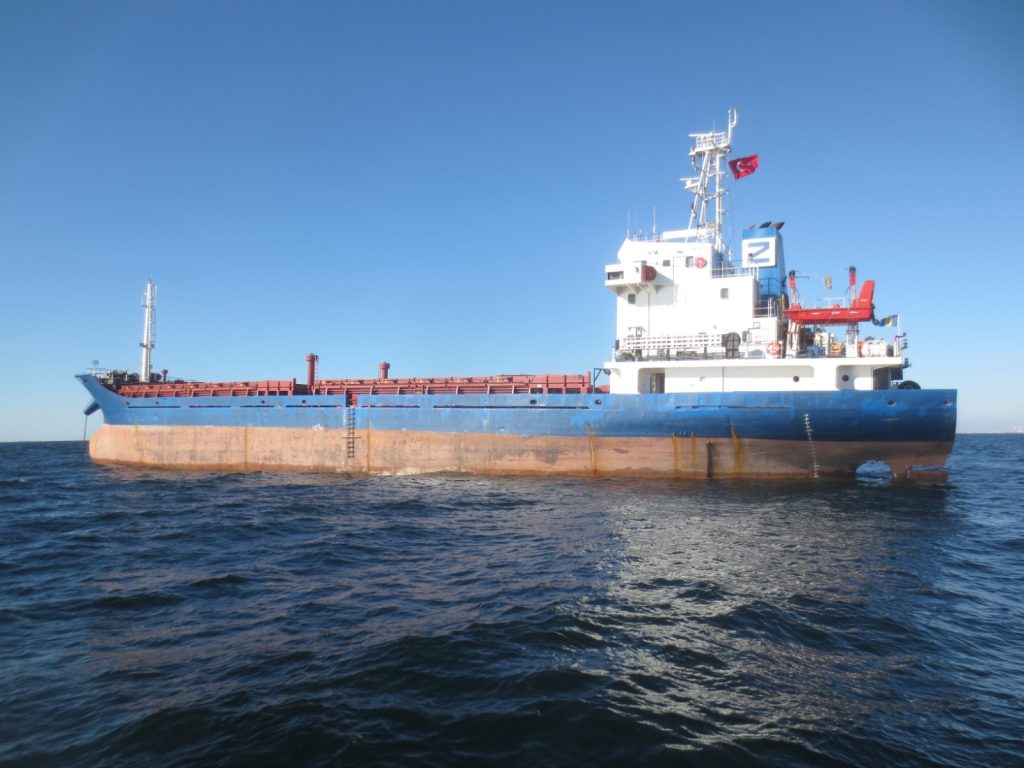

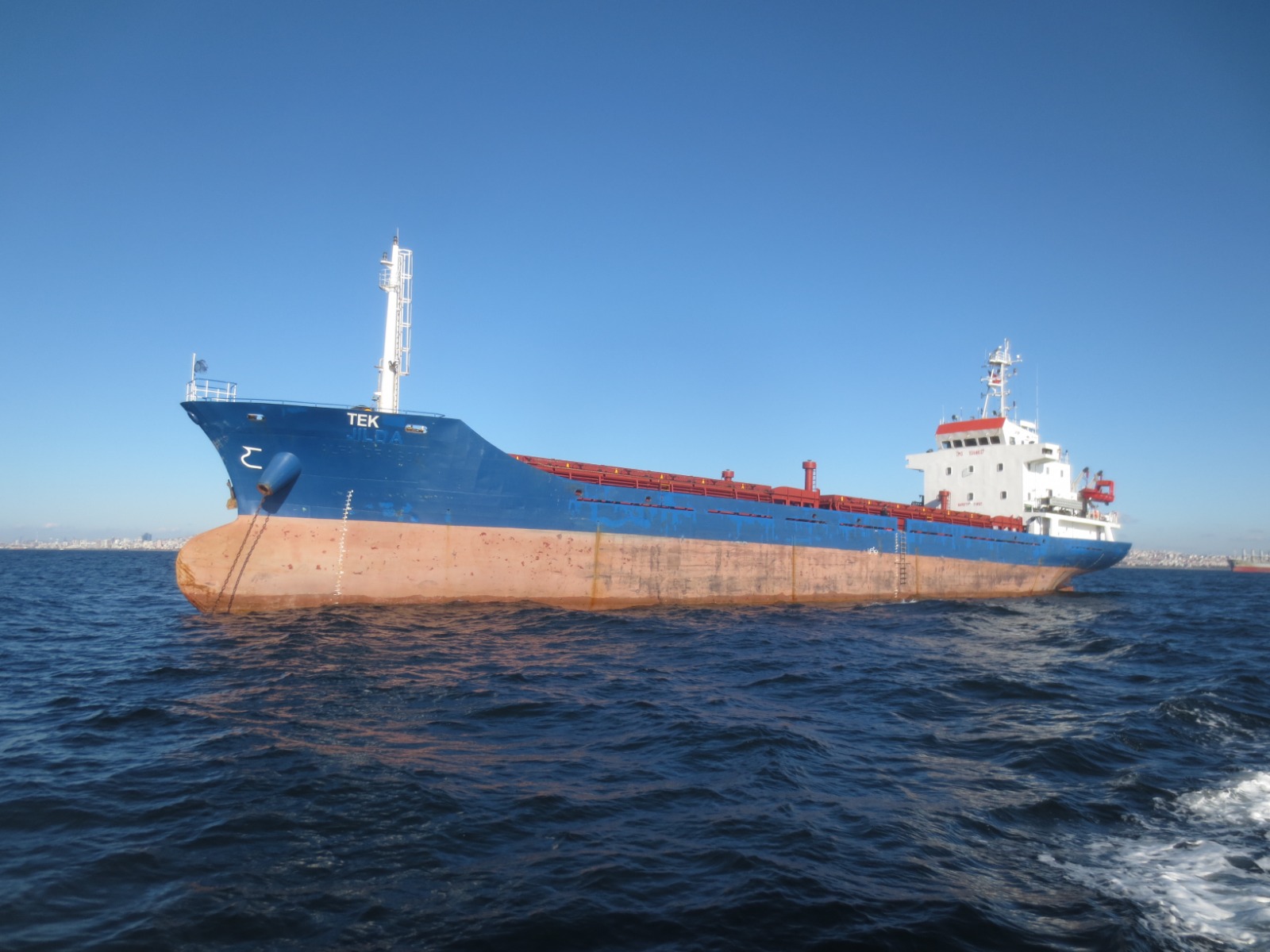

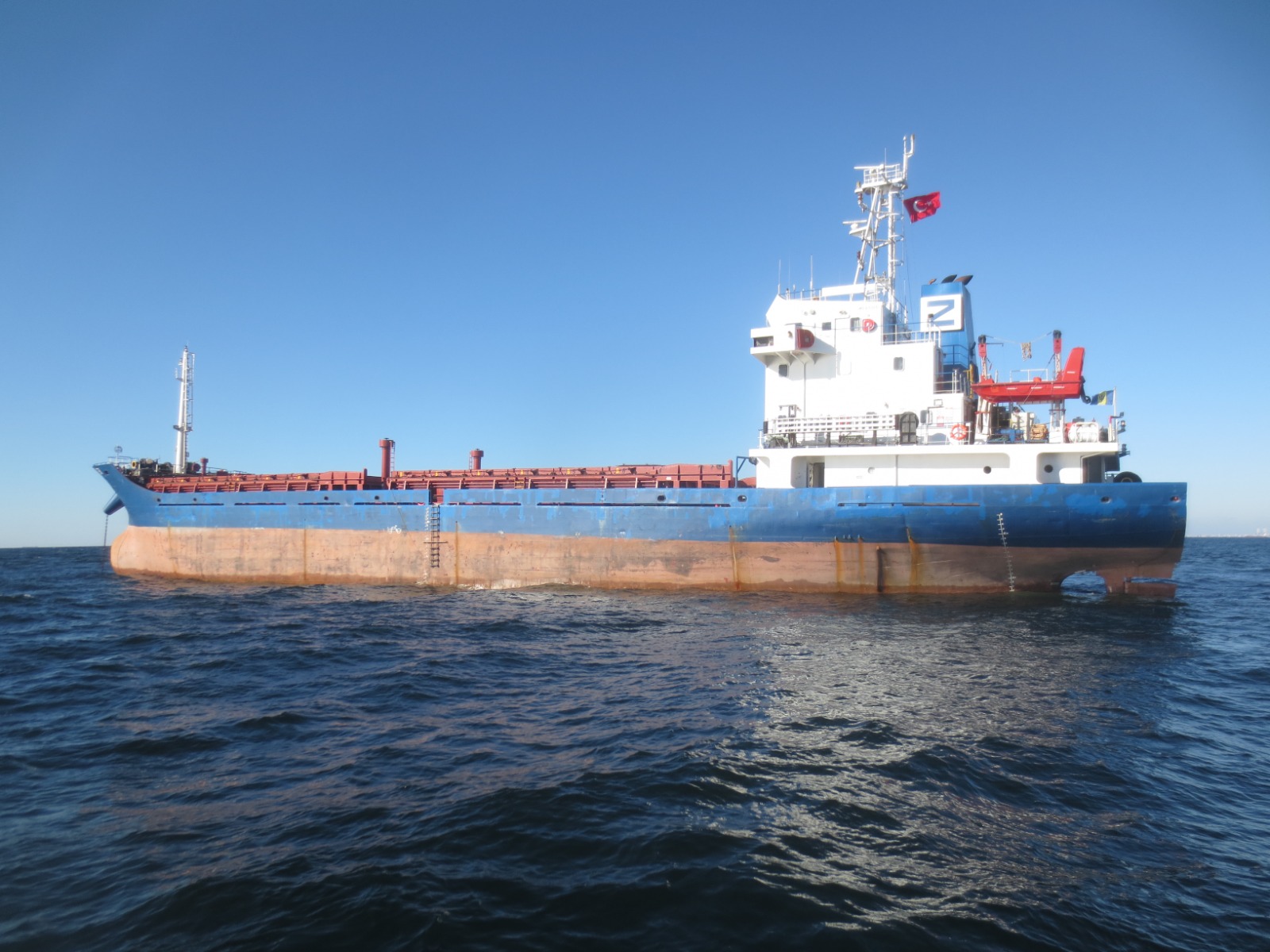

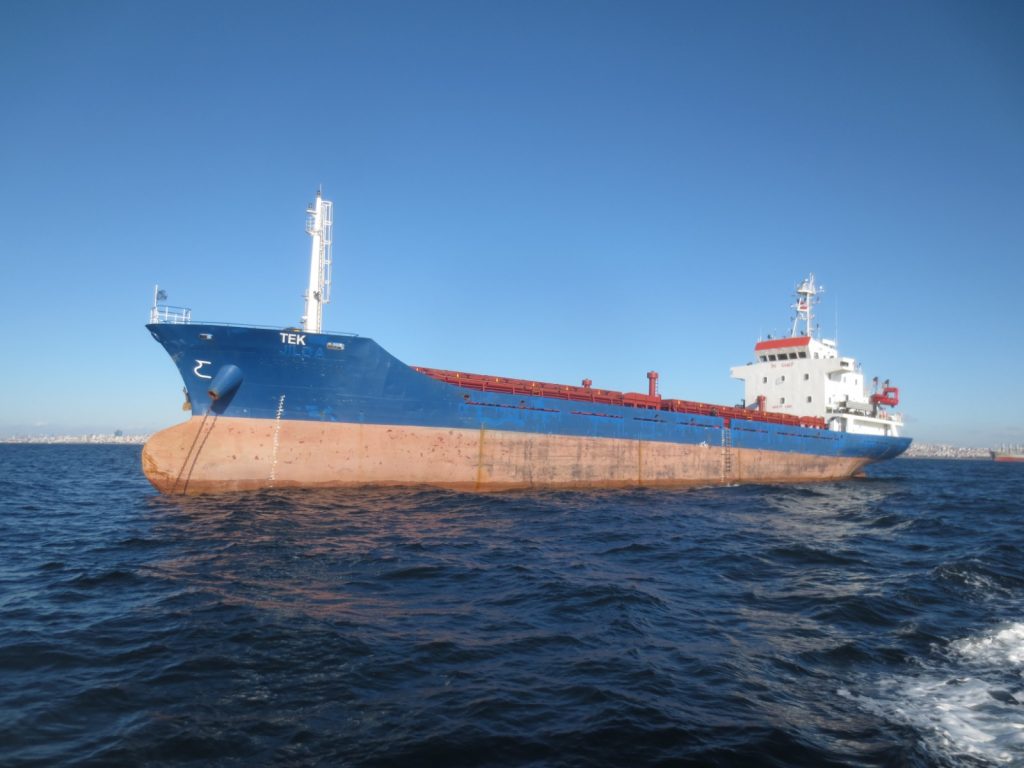

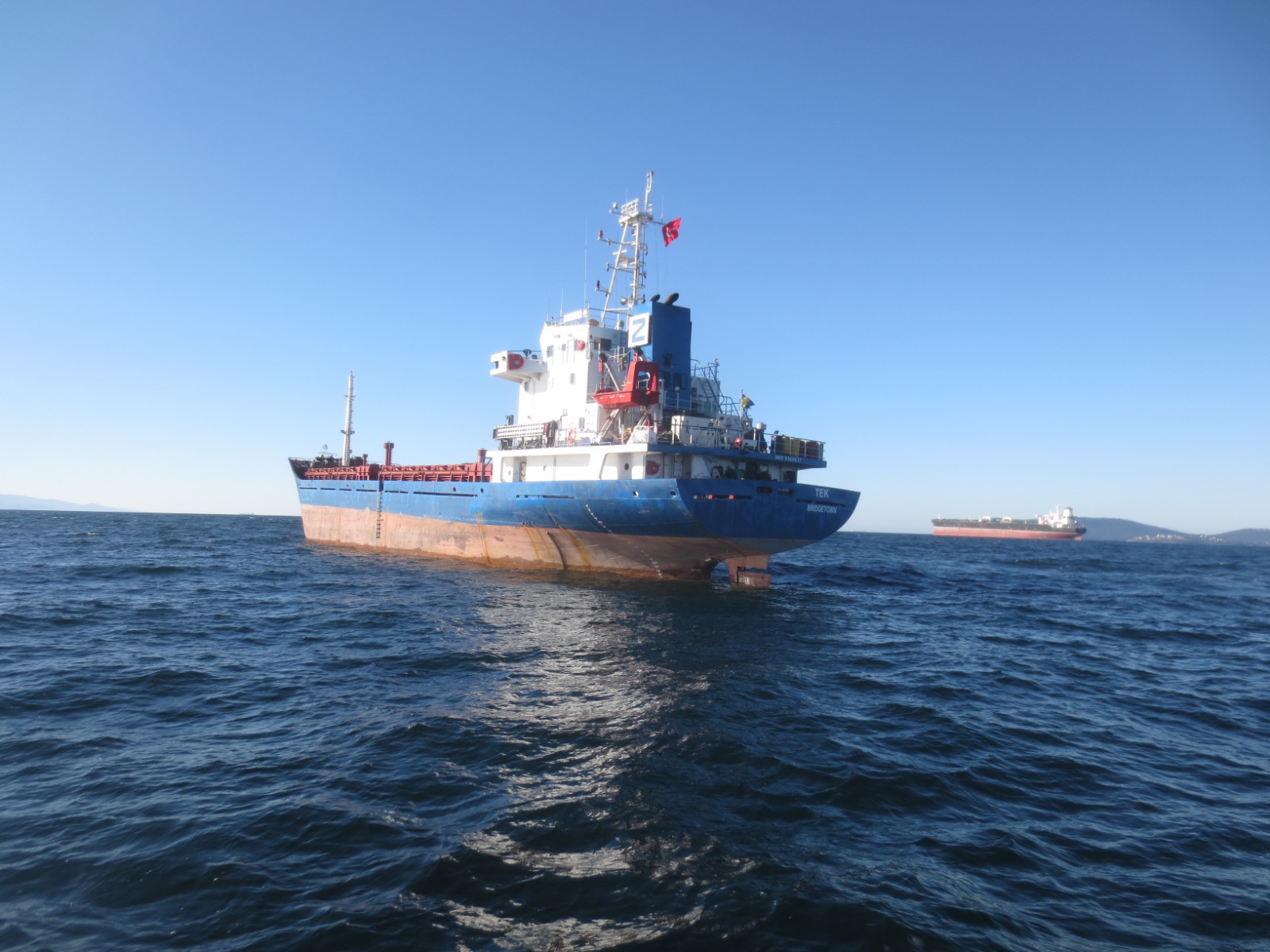

| M/V TEK – SHIP’S PARTICULARS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| SHIP’S NAME |
|
: |
|
TEK |
|
| EX NAME |
|
|
: |
|
JILDA & ALFA DRAGON |
|
|
|
|
|
|
| SHIP’S TYPE |
|
: |
|
GENERAL CARGO |
|
| FLAG |
|
|
: |
|
BARBADOS |
|
| PORT OF REGISTRY |
: |
|
BRDIGETOWN |
|
| CALL SIGN |
|
: |
|
8PBG5 |
|
| OFFICIAL NO |
|
: |
|
733860 |
|
| IMO NO |
|
|
: |
|
9368637 |
|
| MMSI NO |
|
|
: |
|
314 588 000 |
|
| DATE F BUILD |
|
: |
|
01 JAN 2006 |
|
|
|
|
|
|
|
| BUILT DATE, PLACE |
: |
|
DECEMBER 2005, ZHONGYUNAN SHIPYARD TAIZHOU/CHINA |
| CLASS / CLASS NO |
: |
|
BUREAU VERITAS / 09781J |
|
| P&I / P&I NO |
|
: |
|
THE LONDON P&I CLUB / F107 004 |
|
| GRT |
|
|
: |
|
1997 |
|
| NRT |
|
|
: |
|
1392 |
|
| DWT (SUMMER) |
|
: |
|
3367,3MT |
|
| DRAFT (SUMMER) |
|
: |
|
5,5M |
|
| FREE BOARD (SUMMER) |
: |
|
1,4M |
|
| LIGHT SHIP |
|
: |
|
1008,5MT |
|
| LOA |
|
|
: |
|
80,6M |
|
| LBP |
|
|
: |
|
76M |
|
| BREADTH |
|
: |
|
13,6M |
|
| DEPTH |
|
|
: |
|
6,9M |
|
| AIR DRAFT(SUMMER) |
: |
|
26M |
|
| SPEED |
|
|
: |
|
11,28KNTS |
|
| ENGINE TYPE |
|
: |
|
WUXI ANTAI G6300ZC |
|
| ENGINE POWER |
|
: |
|
1323KW (1798HP) |
|
| AUX. ENGINE |
|
: |
|
2 X 187KWA (150KW) 400V, 50HZ |
|
| BOW THRUSTER |
|
: |
|
NO |
|
| PROPELLER |
|
: |
|
1 SOLID SCREW PROPELLER 5 |
|
| BALLAST CAPACITY |
: |
|
712M3 |
|
| NUMBER OF BALLAST TANKS |
: |
|
11PCS |
|
| FW CAPACITY |
|
: |
|
112,94M3 |
|
| D/O CAPACITY |
|
: |
|
161,19M3 |
|
| F/O CAPACITY |
|
: |
|
N/A |
|
|
|
|
|
|
|
|
|
| BILGE &SLUDGE CAPACITY |
: |
|
BILGE : 2,77M3 & SLUDGE : 4,71M3 |
|
| SEWAGE CAPACITY |
: |
|
15,96M3 |
|
| INM-C NUMBER |
|
: |
|
431458811@inmc.eik.com |
|
|
|
|
|
|
|
|
|
|
| HATCH COVER TYPE |
: |
|
PONTOON TYPE WEATHER – TIGHT STEEL HATCHCOVER |
|
| OWNER |
|
|
: |
|
EGEMAR INC. (IMO NO : 5958705) TRUST COMPANY COMPLEX, AJELTAKE ROAD, AJELTAKE ISLANDS MAJURO/MARSHALL ISLANDS |
|
|
|
|
|
|
|
|
|
|
| MANAGER & OPERATOR |
: |
|
EGE DENIZCILIK MURSEL TEKSEN (IMO NO : 5852468) YAYLA MAH. FEVZİÇAKMAK CAD. OFLU APT. NO:52/3 TUZLA/İSTANBUL/TURKEY |
|
| MEANS OF CONTACTS |
: |
|
OPERATION DEP: TEL : 0090/0216 395 04 32 FAX: 0090/216 395 01 32 CHARTERING DEP: TEL: 0090 216 447 00 37 MOBILE:0090 532 423 15 79 |
|
|
chartering@egeship.com / operasyon@egedenizcilik.com |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

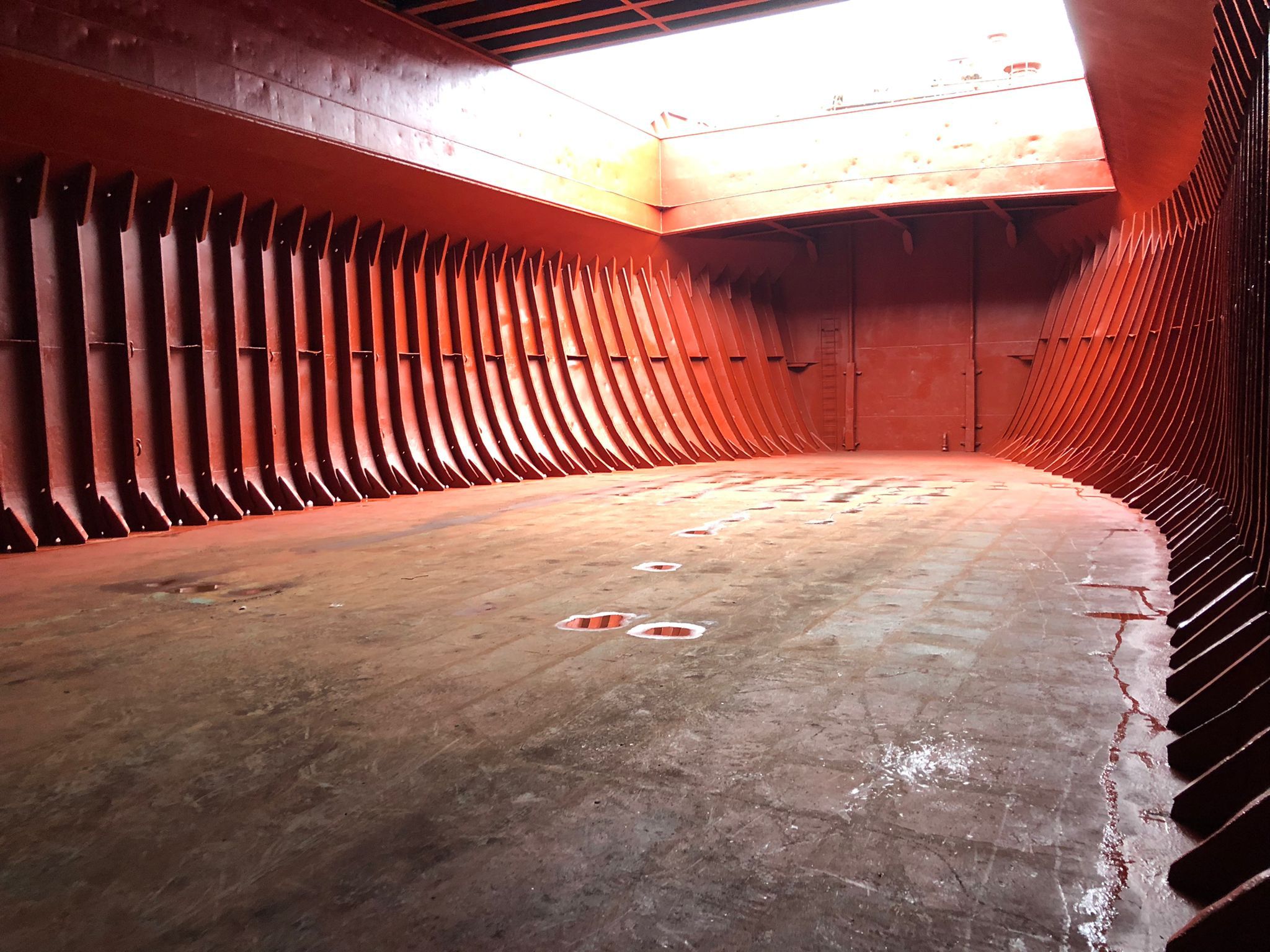

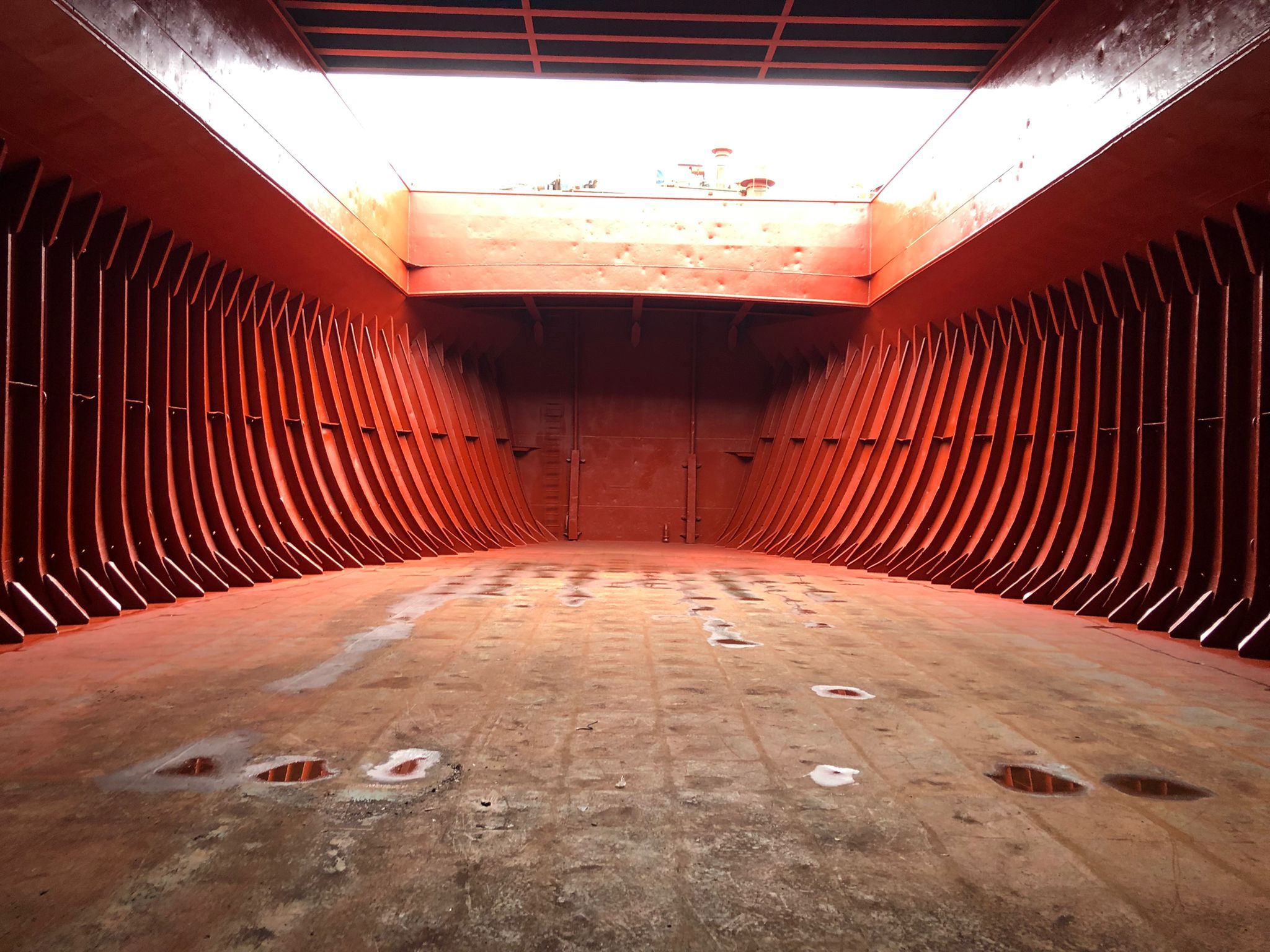

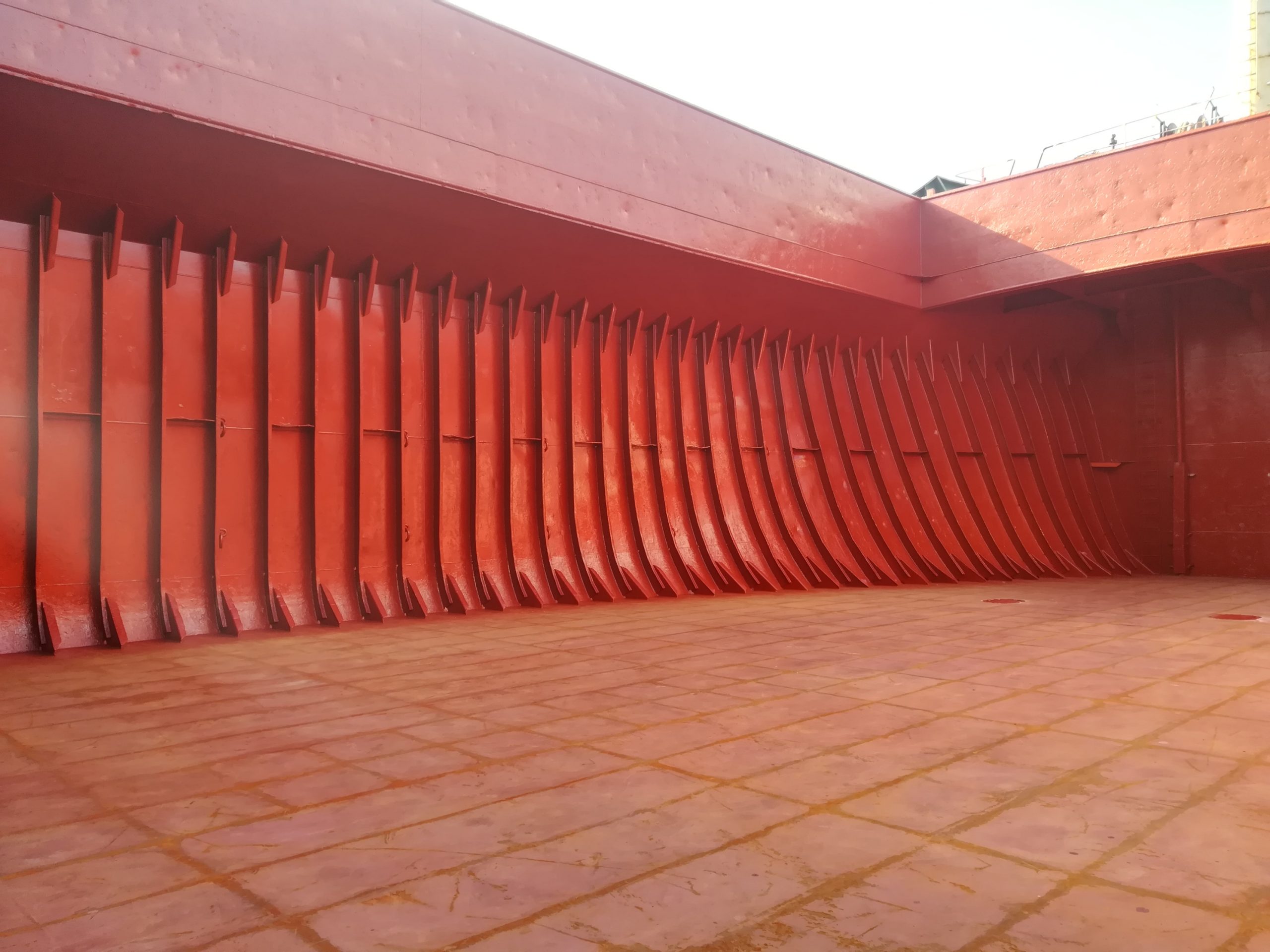

| HOLD CAPACITIES |
|
HOLD DIMENSIONS & HATCH DIMENSIONS |
|
| HOLDS |
GRAIN M3 |
GRAIN FT3 |
HATCH L X B (mt) |
HOLD L X B X H (mt) |
|

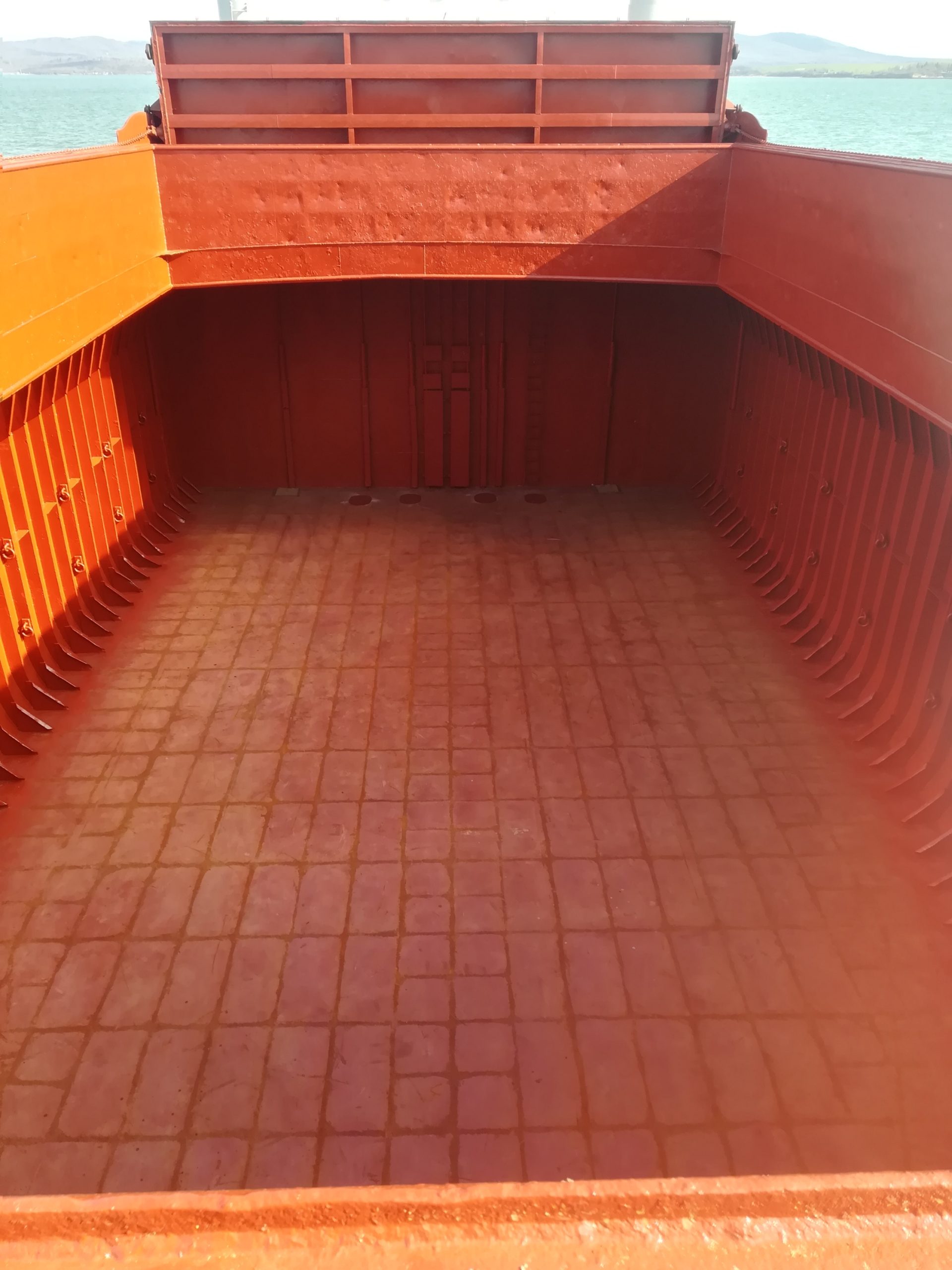

| NO 1 |
|
80976 |
10 X 18,8 X 1,8 |
27,9 X 13,15 X 5,6 |
|
|

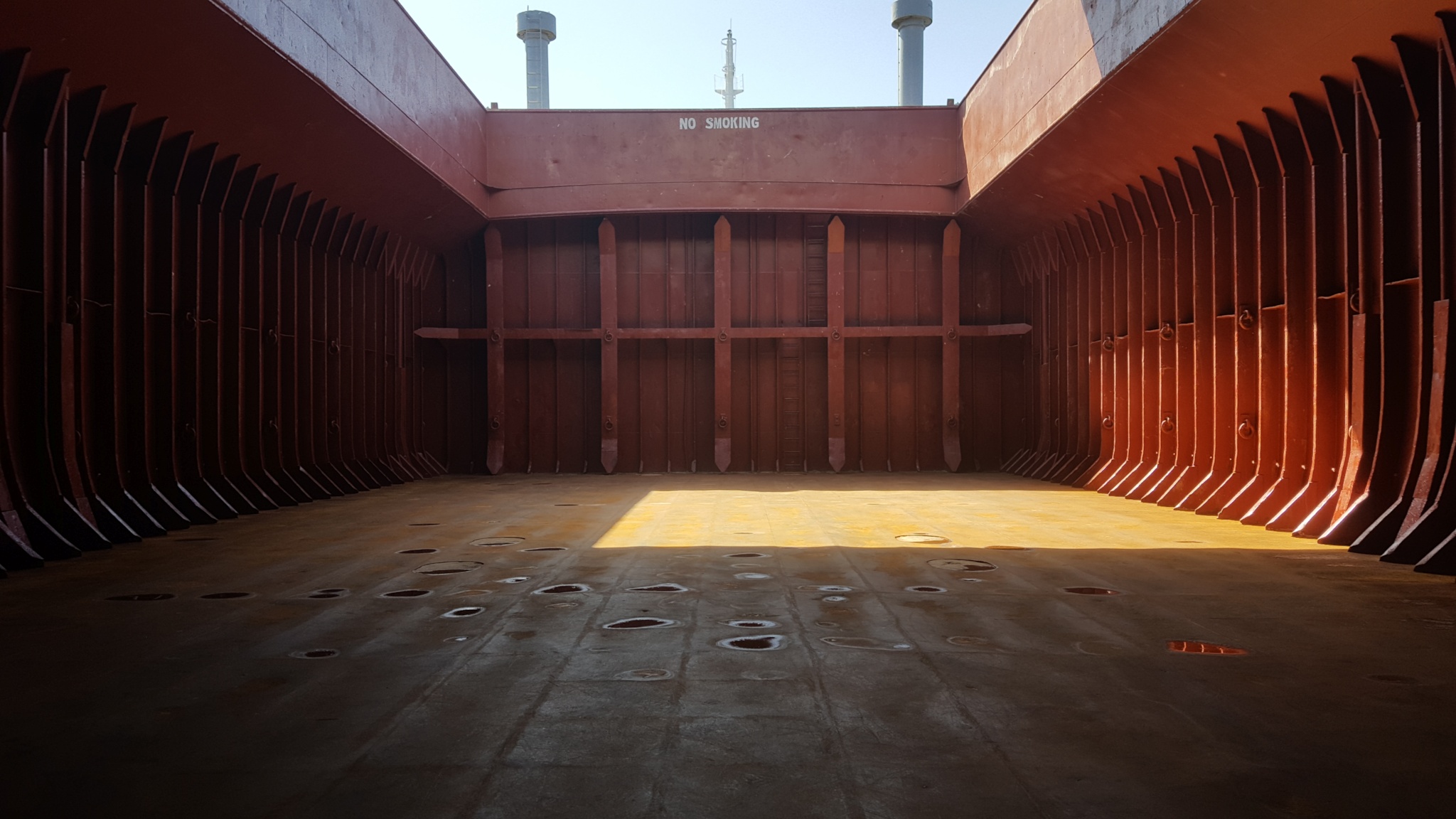

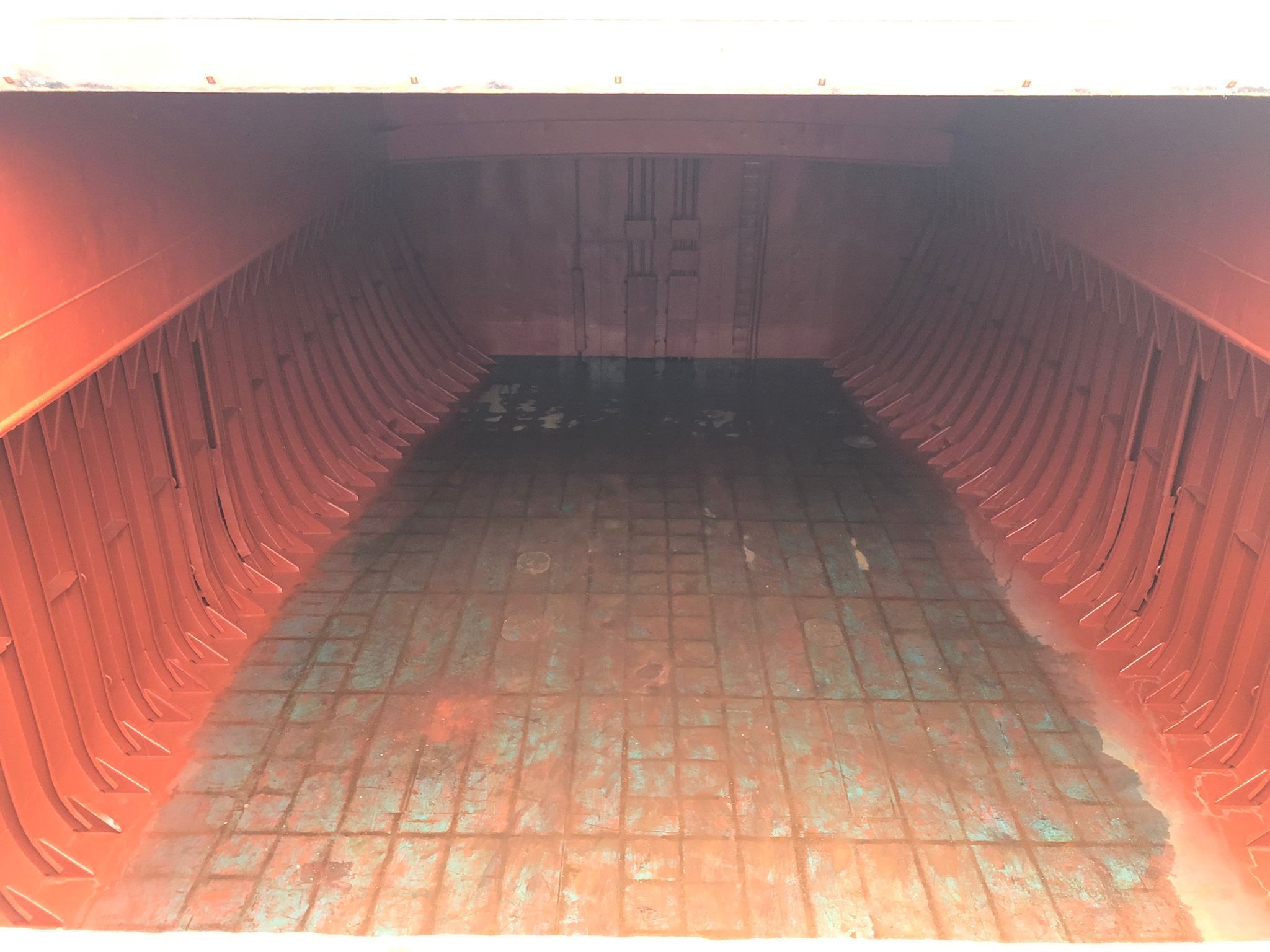

| NO 2 |
|
80164 |
|
|
| TOTAL |
|
161140 |
10 X 18,5 X 1,8 |
25,44 X 13,15 X 5,79 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
