SHIP’S PARTICULARS
SHIP’ NAME M / V   NUR
FLAG VANUATU
REGISTRY PORT PORT VILA
CALL SIGN YJWT9
REGISTRATION NUMBER 2541
IMO NUMBER 9389370
MMSI NUMBER 577448000
INM-C TLX NUMBER
CLASS POLISH REGISTER
CLASS NO 103483
BUILT DATE & PLACE 06.2006- TAIZHOU ZHEJIANG / CHINA
TYPE GENERAL CARGO
P&I LONDON P&I CLUBC
GROSS& NET TONNAGE 1972 & 1395
LIGHT SHIP 1035,5 MT
LOA & LBP 81 M & 76 M
BREADTH 13,6 M
DEPTH MOULDED 6,80 M
AIR DRAFT 26 M
MAX.SUMMER DRAFT 5,5 M
SUMMER DISP. 4384 MT
SUMMER DWT 3348,5 MT
SUMMER FREEBOARD 1310 MM
FWA 118 MM
TPC IN SUMMER DRAFT 9,362 T
MCT IN S.FREEBOARD 47,639 T
HATCH COVER TYPE PONTOON TYPE WEATHER – TIGHT STEEL HATCHCOVERS
HOLD GRAIN CAPACITY ft^3/m3 (NO:1—78433,9 + NO:2–79355,6) :157789 ft3    ;    (NO:1—2221   +  NO:2—2247,1) : 4468,1 m3
HOLD SIZE NO :1 ( 26,6m X 13,2m X 5,9m)  /   NO:2 ( 25,4 X 13,2 X 5,9)
TOTAL BALLAST CAPACITY 575 m3  / 589,35 MT
TOTAL F.W CAPACITY 89,35 MT
TOTAL D/O & F/O CAPACITY D/O 32,51 CBM — 27,31 MT  &  F/O 138,8 CBM–133,25 MT
TOTAL L/O CAPACITY 8,52 CBM — 7,67 MT
SLUDGE & BILGE TANK CAP. 2,1 CBM / 4,2 CBM
SEWAGE TANK CAPACITY 1 CBM (SEWAGE TREATHMENT PLANT TANK)
GARBAGE CAPACITY 0,2 CBM X 4 :0,8 CBM
DAILY CONSUMPTION D/O IN PORT :0,300 MT  – SAILING: 3,5 MT D/O
MAX.SAILING DURATION 40 DAYS & 9600 NM
TYPE OF ANCHORS 2 PIECES STOCKLES TYPE 1740 KG BOW ANCHOR
DIAMETER & NO OF SHACKLES STEEL GRADE AM2 Q 36 & PORT 7 SHACKLE , STARBOARD 7 SHACKLE
TYPE OF ENGINE G6300 – ZC16BH – WUXI DIESEL ENGINE
ENGINE POWER 1800 HP – 1320 KW
GENERATORS 2 X 160KW CHINESE TYPE (NEWLY INSTALLED)
PROPELLER 3500 MM,BRONZE,5 BLADE SOLUD,KEYLESS RIGHT HAND FIX PROPELLER
SAILING SPEED LOADED 9,5 KNOT — BALLAST 10 KNOT
LOADED & BALLAST DRAFTS (LOADED FWD 5,2 -M-AFT 5,8 M)  & (BALLAST FWD 1,2 M–AFT 3,7M)
OWNER NAME & ADRESS EGE MARITIME INC.
  TRUST COMPANY COMPLEX,AJELTAKE ROAD,AJELTAKE ISLAND,MAJURO,MARSHALL ISLANDS

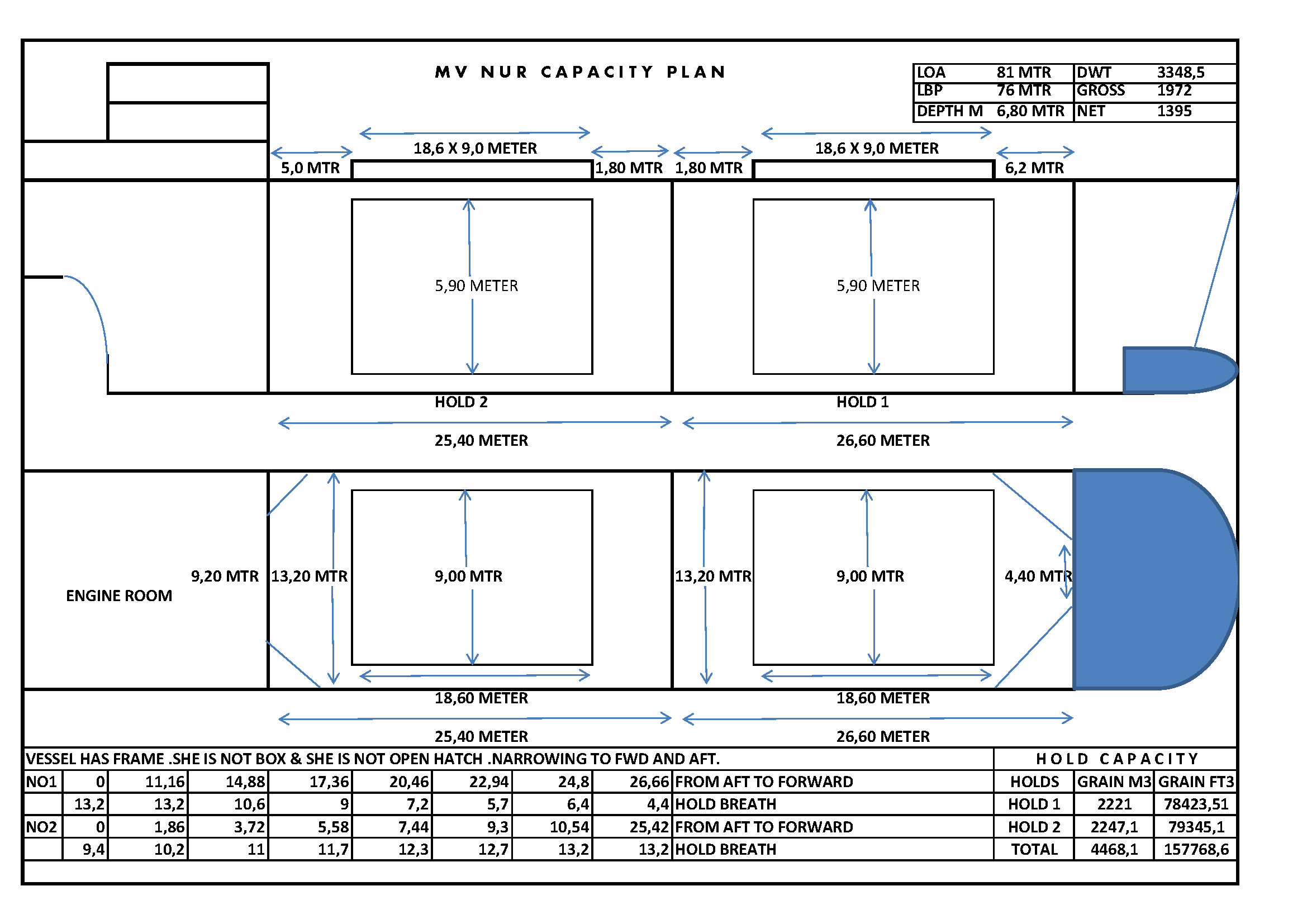

MV NUR NEW CAPACITY PLAN (1)
